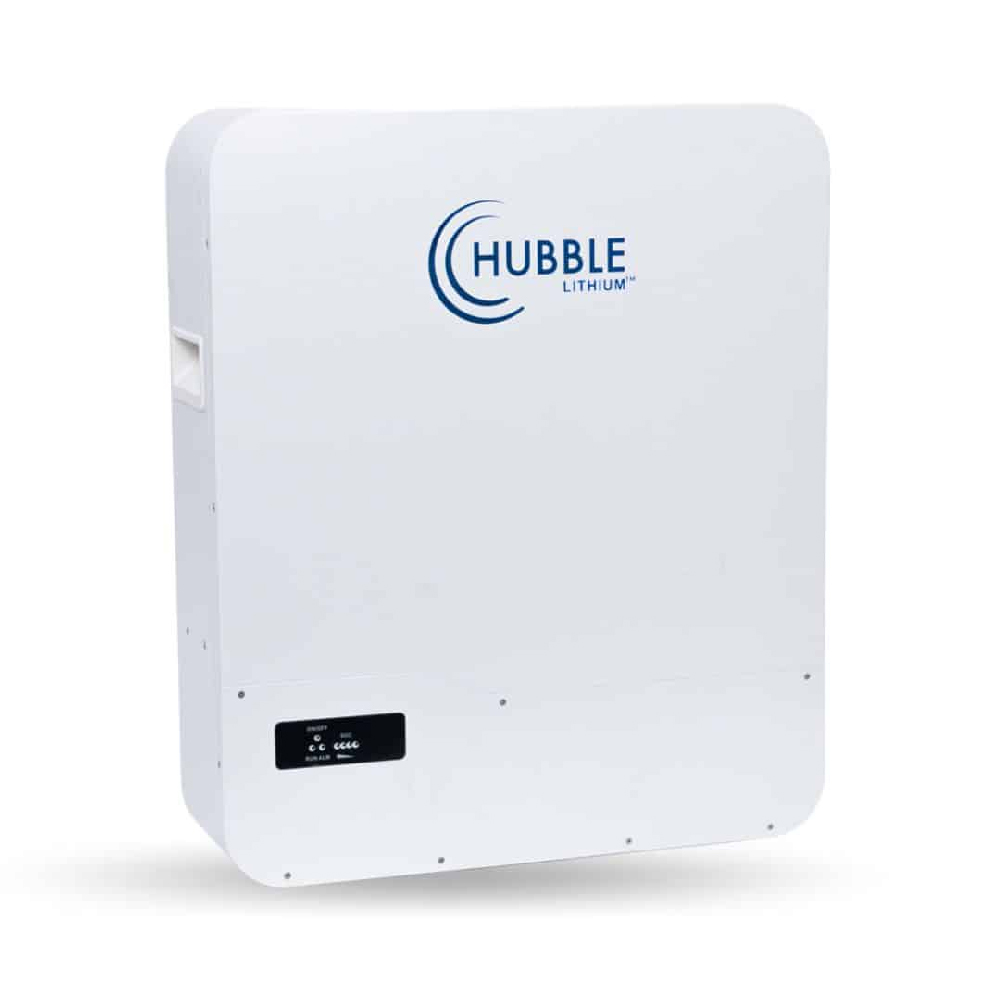

Hubble AM 5 - 51V 5.1kW

Hubble AM 5 – 51V 5.1kW

R27,500.00 ex VAT

Hubble Lithium’s AM5 model is a low voltage (51V), 5.12kWh battery made up of superior prismatic lithium-ion cells. These battery cells have more energy density and a longer cycle life compared to standard lithium cells.

Key Features:

  • Capable of paralleling up to 8 x units in a single string giving a total storage capacity of 40.96kWh.
  • 1C battery capable of providing a continuous charge/discharge power of 5.12kW.
  • Versatile compatibility with leading inverter brands such as Victron, Kodak and Sunsynk.
  • 10year warranty, 15year design life for the battery cells.
  • Installation flexibility – can either be wall-mounted or rack mounted.
  • Remote monitoring via the optional Hubble Cloudlink device.
  • Heavy duty side handles for easy handling and mounting.
SKU: HB_AM5 Categories: , Tags: , , , ,

Description

Hubble AM 5 – 5.1kW 51V Lithium Battery

Hubble Lithium’s AM5 model is a low voltage (51V), 5.12kWh battery made up of superior prismatic lithium-ion cells. These battery cells have more energy density and a longer cycle life compared to standard lithium cells.

Features:

  • Low self discharge
  • High cycle and service Life
  • 1C High performance lithium battery
  • Easy wall mount or shelf rack installation
  • Excellent high temperature performance
  • Advanced BMS with current limiting function
  • Compatible with most inverters and chargers
  • High energy density and conversion efficiency
  • Complete with integrated Battery Management System
  • Hubble Cloudlink integration ready for cloud monitoring
  • Heavy duty side handles for easy handling and mounting on the wall
  • Built in protection for over-charge, over-discharge & over-temperature
  • CAN Bus, fully integrates and communicates with leading Inverter brands

Additional information

Weight 51 kg
Dimensions 510 × 173 × 600 mm

Product Specs

Model Hubble AM-5
Nominal Battery Voltage 51.2 V
Colour White

Physical Specs

Dimensions (L x W x H) 510 × 173 × 600mm
Weight 51kg

Technical Specs

Rated Capacity (5HR) 100AH
Nominal Voltage 51.2 V
Discharge Cutoff Voltage 5.12 KWH
Equalized Charge Voltage 55.2 V
Max. Continuous Charging Current 100 A
Max. Continuous Discharging Current 100 A
Design Life +/- 15 Years
Parallel Parallel connection up to 8 packs with full communications
Cells New Li-ion Prismatic Cells
Cycle Life @ 1C ≥6000 80% DOD
