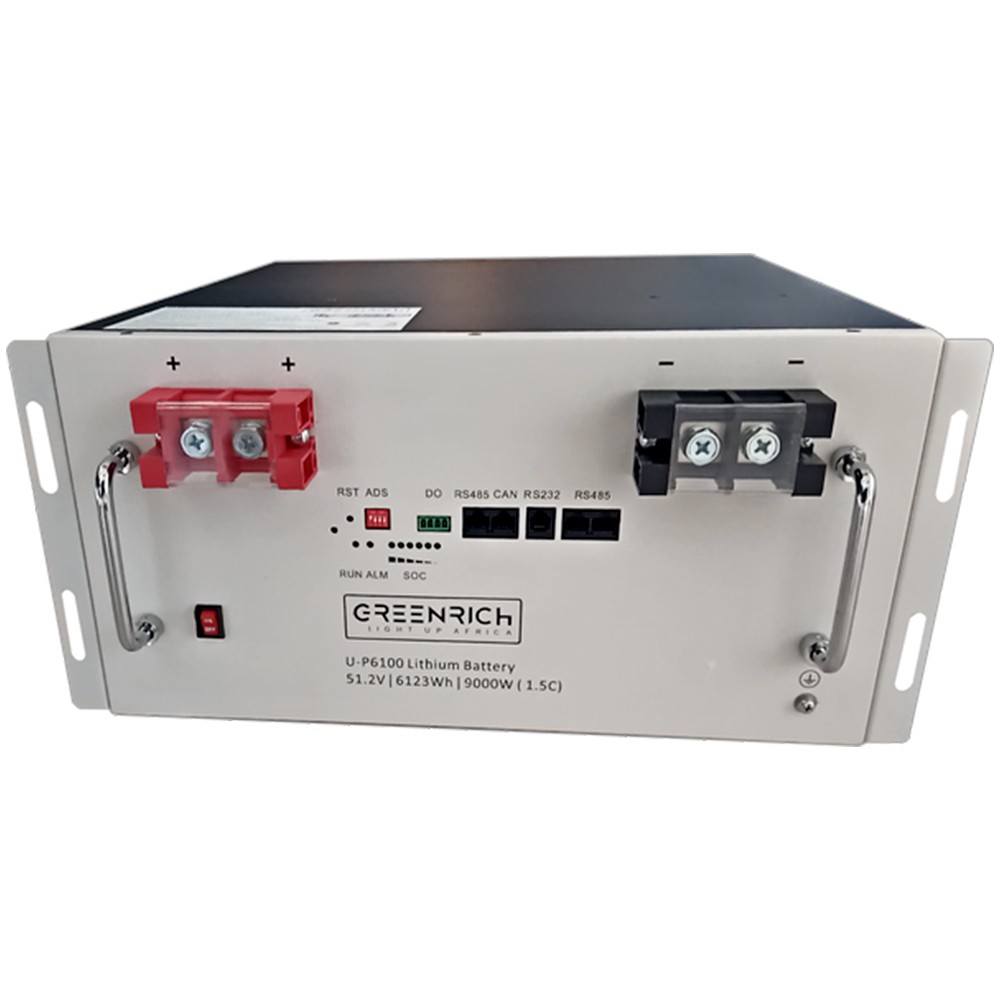

Greenrich UP6100 6.1kWh 9KW

R28,000.00 ex VAT

One of the only 1.5C Discharge batteries available, a good sized battery that packs a big punch.

Features

  • Discharge Current 200A (1.5C continuous)
  • Overvoltage protection
  • Undervoltage protection
  • Short-circuit protection
  • Low temperature charge protection
  • High temperature charge protection
  • Low temperature charge protection
  • High temperature discharge protection
  • Charge over-current protection
  • Discharge over-current protection
  • Dormancy function
  • RS485 communication
  • CAN communication
  • RS232 communication
SKU: GR_UP6100 Categories: , Tags: , , , ,

Description

Greenrich UP6100 Lithium Battery (1.5C battery, 6.1KWH, 9KW)

Why would you want a 1.5C discharge battery?

One of the problems with batteries that don’t have much discharge capacity is when under high temporary load the whole system trips.

If you are using your battery power during the evening or during load shedding you often want to use a kettle, microwave or turn on a pump. With a 1.5C discharge battery it will handle that spike in power.

This product has a decent size that can be paralleled to make a serious battery bank with high performance, great for commercial purposes as well as residential.

Features

  • Discharge Current 200A (1.5C continuous)
  • Overvoltage protection
  • Undervoltage protection
  • Short-circuit protection
  • Low temperature charge protection
  • High temperature charge protection
  • Low temperature charge protection
  • High temperature discharge protection
  • Charge over-current protection
  • Discharge over-current protection
  • Dormancy function
  • RS485 communication
  • CAN communication
  • RS232 communication

Additional information

Weight 57 kg
Dimensions 222 × 442 × 512 mm

Product Specs

Model U-P6100
Voltage 51.2V/119.6Ah
Nominal Capacity 6123Wh
Colour White

Physical Specs

Dimensions (L x W x H) 222 x 442 x 512mm
Weight 57kg

Discharge Specs

Charge mode CC/CV/CP
Max Charging Current 80A
Charging cut‑off Voltage 57V
Discharge mode CC/CP
Discharging cut‑off voltage 45V
Max. Discharge Current 180A (1.5C continuous)
Peak Discharge Current 350A (100ms)
