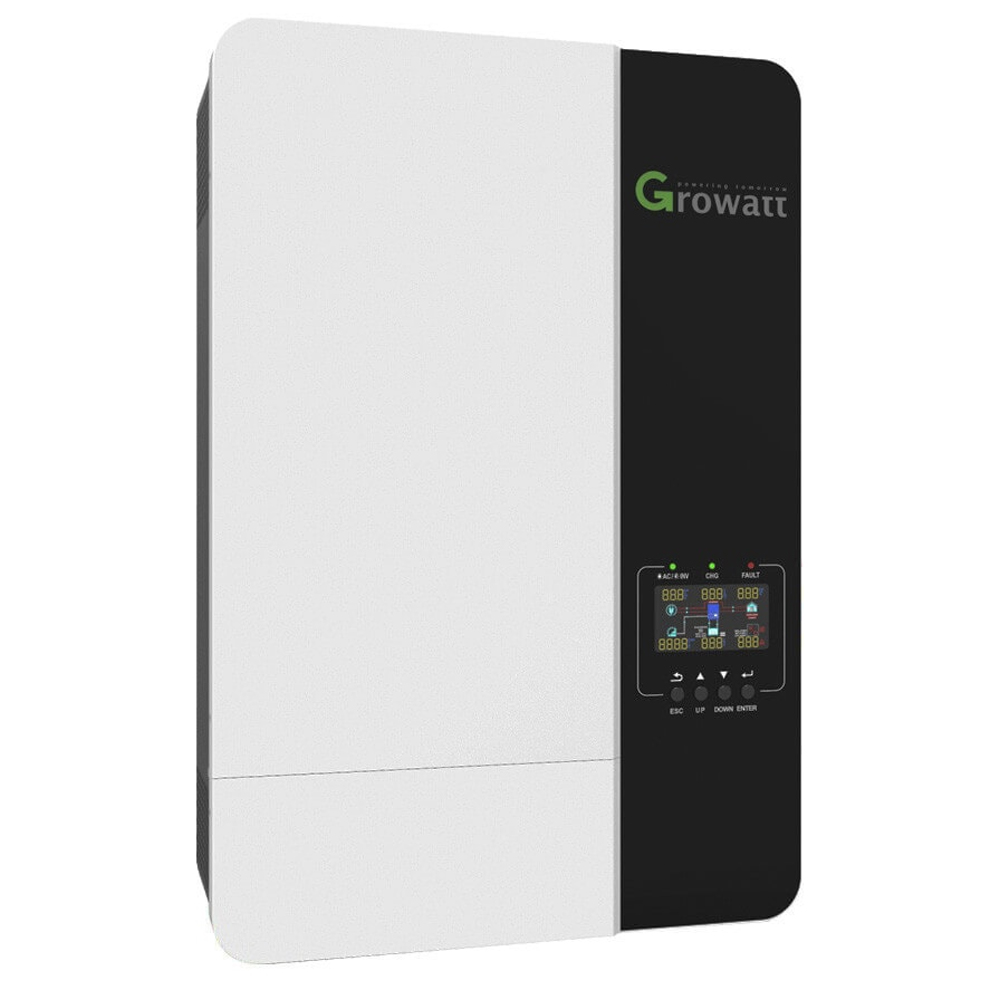

Growatt Inverter 48V 5kW

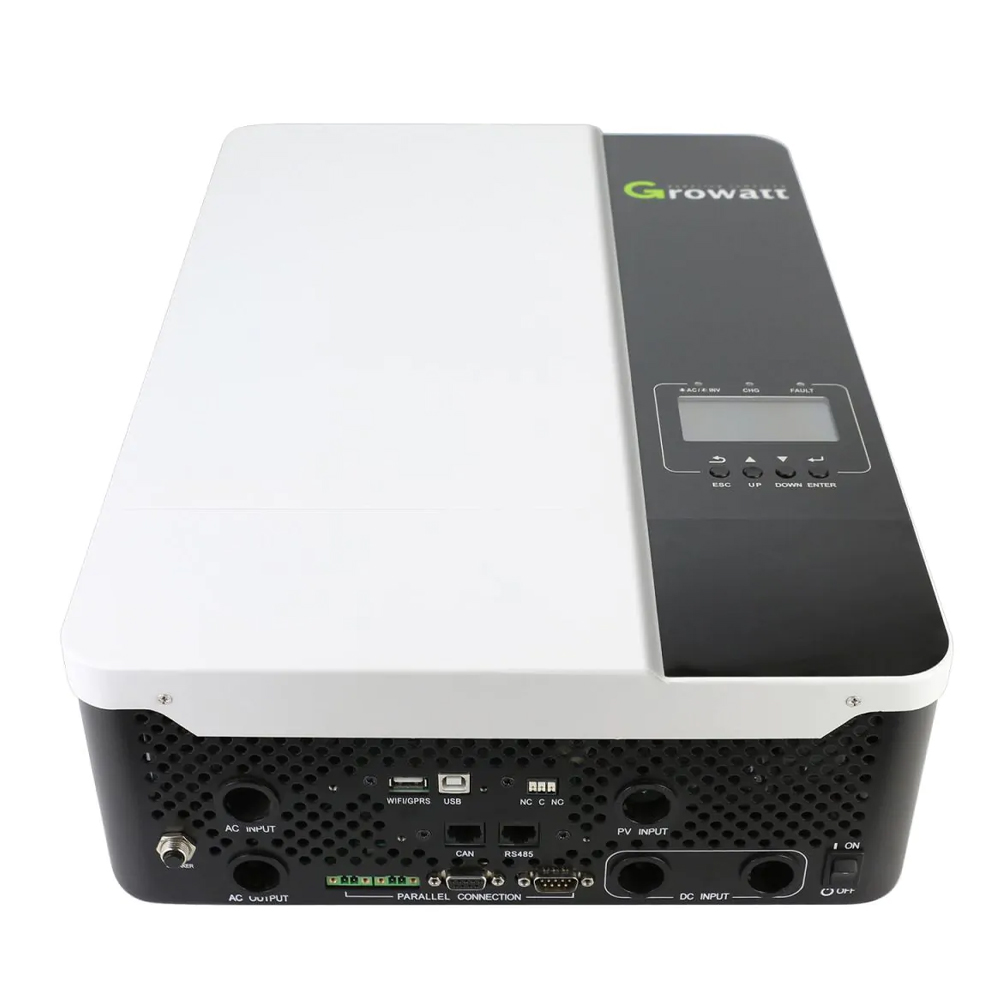

Growatt Inverter 48V 5kW - Image 2

Growatt Inverter 48V 5kW

R10,850.00 ex VAT

  • Integrated MPPT charge controller.
  • Equalization charging function.
  • Work with or without battery.
  • PV input voltage up to 450VDC.
  • Configurable grid or solar input priority.
  • With WIF/GPRS remote monitoring
  • Support parallel operation for capacity expansion up to 30kW.
  • PV and grid power the load jointly if PV energy is insufficient.
  • Flexibly schedule the Inverter charging and discharging time.
SKU: Growatt_Inverter_5kw Categories: , Tags: , ,

Description

Growatt GT SPF 5000 ES SPF5000 Inverter ES-48

  • Rated Power: 5000VA/ 5000W
  • Parallel Capability: Yes, 6 units
  • Integrated MPPT charge controller.
  • Works with battery or without battery
  • Surge Power: 10000VA
  • Maximum Pv Array power 5500w
  • Maximum PV input voltage up to 450VDC.
  • Optional wifi or GPRS monitoring

Additional information

Weight 12 kg
Dimensions 330 × 485 × 135 mm

Product Specs

Model SPF 5000 ES
Battery voltage 48VDC
Rated Power 5000VA/ 5000W
Parallel Capability Yes, 6 units
AC Voltage Regulation (Battery Mode) 230VAC ± 5% @ 50/60Hz
Surge Power 10000VA
Efficiency (Peak) 93%
Waveform Pure sine wave
Transfer Time 10 ms (For Personal Computers); 20 ms (For Home Appliances)
Maximum PV Array Power 5500W
MPPT Range @ Operating Voltage 120VDC ~ 430VDC
Maximum PV Array Open Circuit Voltage 450VDC
Maximum Solar Charge Current 100A
Maximum Efficiency 97%
Charge Current 80A
AC Input Voltage 230 VAC
Selectable Voltage Range 170-280 VAC (For Personal Computers) ; 90-280 VAC (For Home Appliances)
Frequency Range 50Hz/60Hz (Auto sensing)

Physical Specs

Dimensions (L x W x H) 330 × 485 × 135mm
Weight 12kg
