R44,500.00 ex VAT
Thanks to the smart monitoring platform, Deye full series inverter products support remotely shutdown immediately when accident occurs. Setting parameters and FW update remotely, which makes PV plant O&M easier.

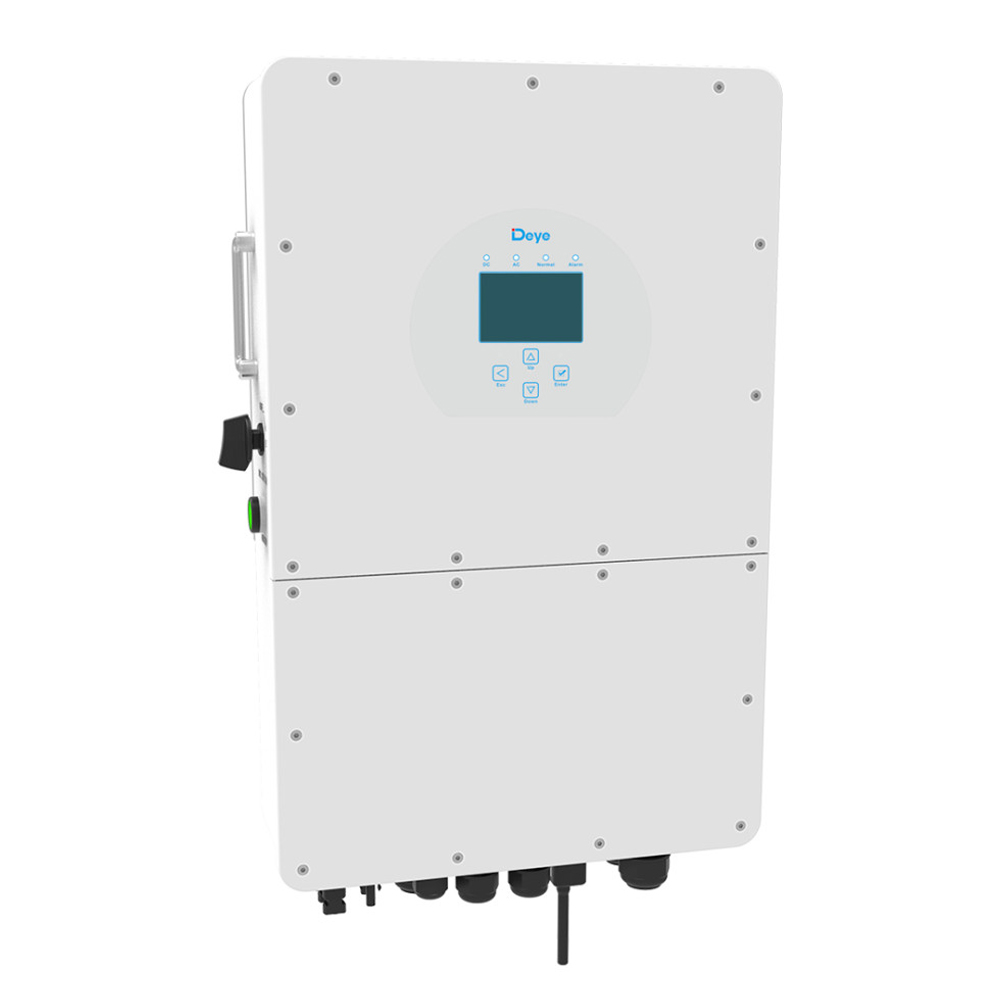

20KW 3 Phase High Voltage Hybrid Inverter, CAN-BUS, Wi-Fi, LCD
| Weight | 30.5 kg |
|---|---|
| Dimensions | 408 × 638 × 237 mm |
| Model | SUN-20K-SG01HP3-EU-AM2 |
| Battery Type | Lithium-ion |
| Max. Charging Current | 37A |
| Max. Discharging Current | 37A |
| External Temperature Sensor | Yes |
| Charging Strategy for Li-Ion Battery | Self-adaption to BMS |
| Max. DC Input Power | 26000W |
| Max PV Input Voltage | 1000V |
| MPPT Range | 150-850V |
| Start-up Voltage | 180V |
| PV Input Current | 26A+26A |
| Peak Power (off-grid) | 1.5 time of rated power, 10 S |
| Rated AC Output and UPS Power | 16000W |
| Installation Style | Wall-mounted |
| Warranty |
5 Years/10 Years the Warranty Period Depends the Final Installation Site of Inverter, More Info Please Refer to Warranty Policy
|
| Dimensions (L x W x H) | 408 × 638 × 237mm |
| Weight | 30.5kg |
