R32,000.00 ex VAT

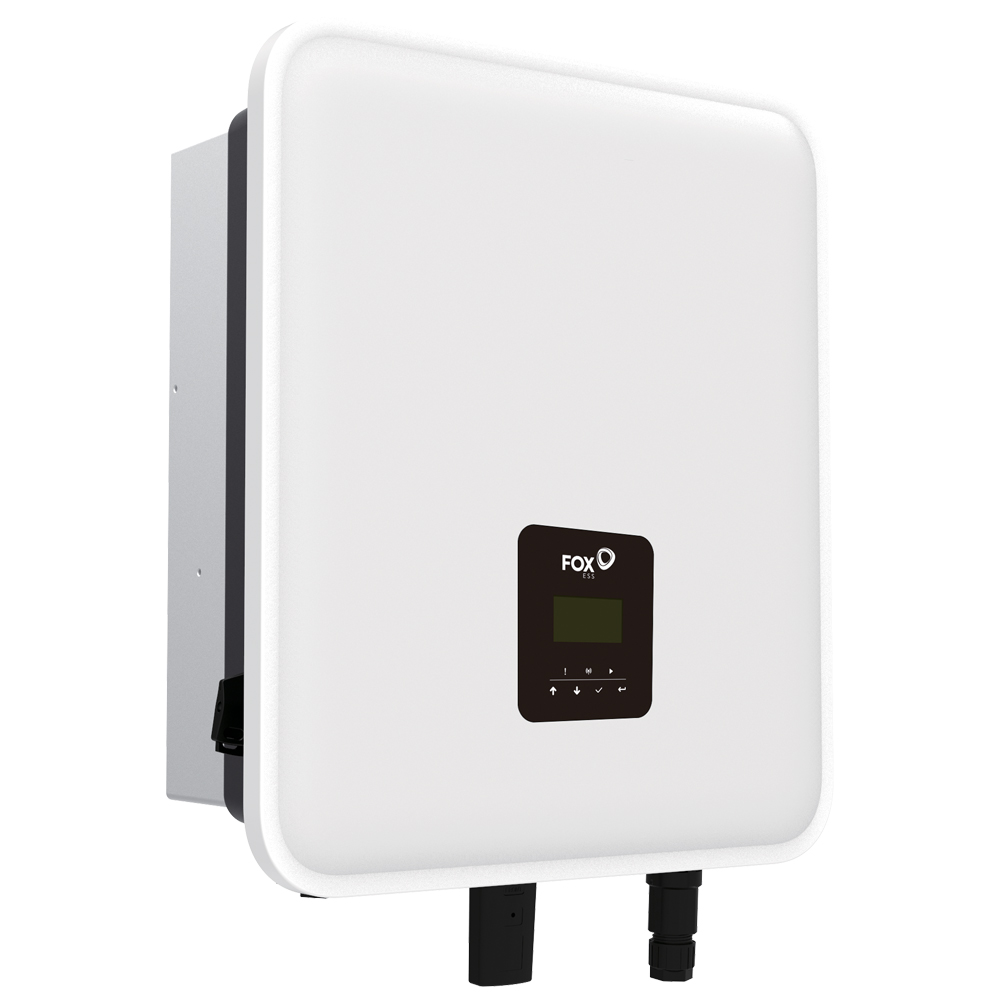

The FoxESS KH10 is a stylish 10kW single phase IP65 full hybrid inverter. The Fox KH10 uses high voltage batteries for maximum round-trip efficiency, ensuring you get the most out of your solar system. The FoxESS KH10 is easy to install, saving you valuable time on site. The FoxESS Cloud allows for easy remote monitoring and control, making it a breeze to support remotely.
FoxESS 10000W Single Phase, Three MPPT Hybrid inverter with Wifi, EPS and Parallel Function
| Weight | 29 kg |
|---|---|
| Dimensions | 450 × 527 × 203 mm |
| Model | KH10 KA10 |
| Battery Type | Li-Ion |
| Battery Voltage Range | 85-450V |
| Recommended Battery Voltage | 300VDC |
| Max. Charge Current | 50A |
| Max. Discharge Current | 50A |
| Reverse Connect Protection | Yes |
| Max. Recommended DC Power | 13000W |
| Max. DC Voltage | 600V |
| Norminal DC Operating Voltage | 360V |
| MPPT Voltage Range | 80-500V |
| Start-up Voltage | 75V |
| No. of MPP Trackers | 4 |
| Strings Per MPP Tracker | 1 |
| DC Disconnection Switch | Optional |
| Norminal AC Power | 10000VA |
| Max. Apparent AC power | 10500VA |
| Rated Grid Voltage (AC Voltage Range) | 220/230/240（180 to 270） |
| Norminal AC Current | 43.5A |
| Max. AC Current | 45.7A |
| Max AC Power | 18000VA |
| Max. AC Current | 78.3A |
| Certification | G98 / G99 /AS4777.2 / EN50549-1 / CEI 0-21 / VDE-AR-N 4105 / NRS 097-2-1 and so on |
| LCD Display | Backlight 16*4 Character |
| Dimensions (L x W x H) | 450 × 527 × 203mm |
| Weight | 29kg |
