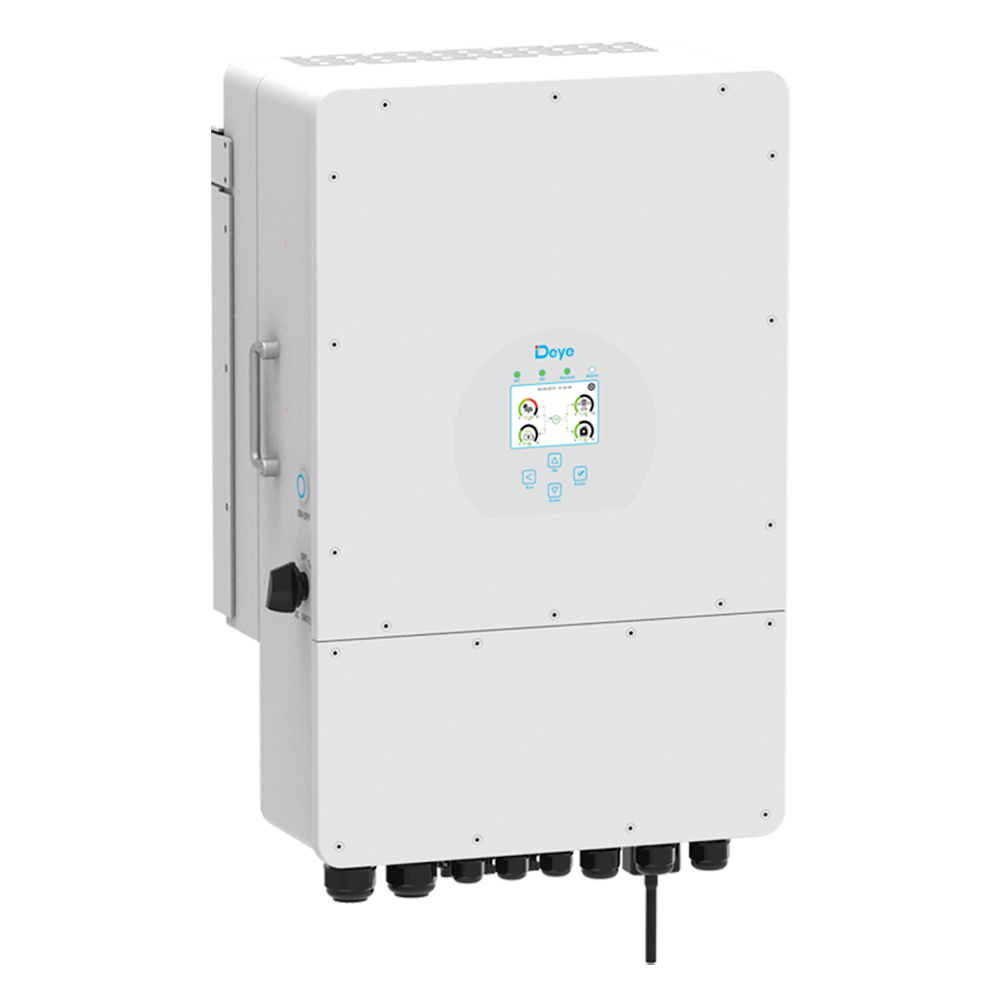

Deye Phase Hybrid Inverter 12KW

Deye Phase Hybrid Inverter 12KW

R42,500.00 ex VAT

Integrating independent grid port, diesel generator port and load port, more flexible and powerful. The diesel generator port also can be used as input or output port. As an input, it can connect microinverter or string inverter. When as a output, it can be used to power the load Smart load. Built in ON/OFF switch, easily cuts off output when emergency situation, more safe and reliable.

SKU: Deye_Inverter_CanBus_12kw Categories: , Tags: , ,

Description

12KW 3 Phase Hybrid Inverter, CAN-BUS, Wi-Fi, LCD

  • Higher charging and discharging power of 240A &12000W for 12KW model.
  • 48V low voltage battery, built in transformer for electrical isolation more safer.
  • Max. DC input current is 13A/string, the DC/AC ratio of 1.3.
  • Independent Grid port, diesel generator port and backup load port, easy connection.
  • Built in DG control interface, and support DG charges the battery ensuing the system works within 7*24H.
  • 2 kinds of AC couple method to update existing solar system to energy storage system.
  • Max. 16 units parallel operation without additional
  • TIME OF USE function, support 6 different time periods for charging and discharging
  • 4ms fast transfer from on grid to off grid mode, ensuing the traditional fixed frequency air conditioner works well
  • Colorful touch screen and buttons, easy operation and maintenance.
  • Smart load application, expanding application scenario
  • Grid peak shaving function, improving self consumption ratio of solar energy

Additional information

Weight 37 kg
Dimensions 660 × 430 × 280 mm

Product Specs

Model SUN-12K-SG01LP3
Battery Type Lead-acid or Lithium-ion
Max. Charging Current 240A
Max. Discharging Current 240A
External Temperature Sensor Optional
Charging Strategy for Li-Ion Battery Self-adaption to BMS
Max. DC Input Power 15000W
Max PV Input Voltage 450V (140V~1000V)
MPPT Range 140V~800V
Start-up Voltage 160V
PV Input Current 25A+12.5A
Peak Power (off-grid) 2 time of rated power, 10 S
AC Output Rated Current 17.4A
Max AC Current 19.1A
Max Continuous AC Passthrough 60A
Installation Style Wall-mounted
Warranty 5 Years

Physical Specs

Dimensions (L x W x H) 660 × 430 × 280mm
Weight 37kg
